Bounds on distinct and repeated dot product trees

We study dot-product analogues of Erdős-type distance problems for configurations involving more than one pair of points. The configurations are encoded by weighted trees whose vertices lie in a large finite subset of Euclidean space and whose edge weights are dot products. We obtain lower bounds for the number of distinct weight vectors realized by a fixed tree type. We also construct point sets for which particular weight vectors occur with high multiplicity, narrowing the gap between known upper and lower bounds for repeated dot-product tree configurations.

This page follows the manuscript closely. It is written as mathematical exposition rather than as a summary page.

1 Introduction

1.1 Background

In 1946, in [12], Paul Erdős posed a problem that continues to inspire mathematicians: In a large finite set of points in the plane, what is the upper bound of the number pairs can determine the same distance? This is often called the unit distance problem. A related problem also described in [12] is the so-called distinct distances problem, which asks for a lower bound on the number of distinct distances that must be determined by any large finite set of points in the plane.

For the unit distance problem, after some initial activity, general progress seems to have halted in 1984, at the upper bound of a constant times \(n^\frac{4}{3},\) given by Szemerédi and Trotter in [37]. In the case of the distinct distances problem, there was much activity and incremental progress up until 2010, when Guth and Katz essentially resolved the problem in [19]. For a more detailed look, see [18] and [19], and the references contained therein.

Though Erdős originally asked about pairs of points determining a fixed distance, there are a number of well-studied variants involving \(k\)-tuples of points determining other values, such as direction, angle, or dot product. Moreover, there are many different settings besides finite point sets in \(\mathbb R^2\), such as fractal sets, higher dimensions, or even different types of vector spaces and modules over finite fields and rings. For some examples and discussions, see [8, 11, 22, 27, 43] and the references contained therein. Also, we assume that the dot products discussed below are all nonzero, unless otherwise specified, as zero dot products can exhibit quite distinct geometric structure. See [20, 27, 31] for more on the unique geometric properties of zero dot products.

We highlight for the moment on the specific problem of the number of distinct dot products determined by a large finite point set in the plane. Given a set of \(n\) points in the plane, a straightforward argument using the celebrated Szemerédi-Trotter theorem (from [41]) guarantees the existence of at least a constant times \(n^\frac{2}{3}\) distinct dot products. We prove this below as Corollary [ezdp]. This was the best-known bound for many years until the recent developments by Hanson, Roche-Newton, and the fourth listed author in [21], where an exponent of \(\frac{2}{3}+\frac{1}{2739}\) was achieved by relying on tools from additive combinatorics.

1.2 Setting

Our primary objects are weighted trees. We first fix the notation. For a given large finite point set \(E\subseteq \mathbb R^d,\) with \(d\geq 2,\) we consider \(G_E\) the complete edge-weighted graph whose vertices are points from \(E\) and whose edge weights are determined by the dot product between the associated vertices. Given a tree \(T\), we estimate two things: how many different sequences of edge weights correspond to instances of \(T\) as a subgraph in \(G_E\), and how many times a specific sequence of edge weights occurs as the weights for a copy of \(T\) in \(G_E.\) The former is analogous to the distinct distances problem, while the latter is akin to the unit distance problem.

To this end, we introduce some notation. Given a tree \(T\) with vertices \((v_1, \dots, v_{k+1})\) we denote its \(k\) edges by \(\{\{v_{i_1},v_{i_2}\},\{v_{i_3},v_{i_4}\},\dots,\{v_{i_{2k-1}},v_{i_{2k}}\}\}\), where the indices for each pair of vertices corresponding to an edge, \(\{v_{i_{2j-1}},v_{i_{2j}}\},\) are indexed in lexicographical order. Given a sequence of real number weights \(\vec w:=(\alpha_1,\ldots,\alpha_k)\), we can consider the weighted tree \(T_{\vec w}\) where the edge connecting \(v_{i_{2j-1}}\) to \(v_{i_{2j}}\) has weight \(\alpha_j\), for \(j=1, \dots, k.\) In what follows, we usually consider edge weights equal to the dot product determined by the pair of points corresponding to the pair of vertices.

There is an abundance of literature on the case that our tree \(T\) is a path of length \(k,\) sometimes called a \(k\)-chain. See for example [4], [17], and [35] for distance chain bounds, and see [5] and [31] for results related to dot product chains. More general trees have also been widely studied, but we direct special attention to [34], by Ou and Taylor, and later, [36], by Dung, Pham, and the fourth listed author, for motivating the results here.

Throughout this paper, we assume that \(k\) is like a constant compared to the size of any subset \(E\). To ease exposition, we use the asymptotic symbols \(X\lesssim Y\) if \(X=O(Y),\) and \(X\approx Y\) when \(X = \Theta(Y).\) Moreover, we write \(X \gtrapprox Y\) when for every \(\epsilon >0,\) there exists a constant \(C_\epsilon > 0\) such that \(X \gtrsim C_\epsilon q^\epsilon Y.\)

1.3 Main results

Our main result follows the ideas in [34]. It gives lower bounds for the number of distinct sets of dot products much arise as edge weights for trees in a large finite point set in the plane. We note that there is a hypothesis about the number of points along a line through the origin, as there is a technical obstruction from certain special cases of point sets which we discuss in further detail below.

The key to proving this result is a pinned dot product result between two sets, stated precisely below as Theorem [pinned]. While this result does not immediately extend to to higher dimensions, we can still obtain a nontrivial pinned estimate.

Our second main result gives lower bounds for the multiplicity of a prescribed dot-product weight vector. Two complementary constructions produce the relevant regimes.

We have depending on \(k\) and the ambient dimension, one or the other bound may dominate. To compare this with known results, we can consider a special case. Suppose \(T\) is a perfect binary tree of height \(h\). It is known that this tree has \(2^{h+1}-1\) vertices, meaning it has \(2^{h+1}-2\) edges. So if we set \(k=2^{h+1}-2,\) Theorem [main2] guarantees the existence of a set of \(n\) points and a \(k\)-tuple of dot products \(\vec w\) in the plane that has \(\gtrsim n^{2^h-1}\) copies of \(T_{\vec w}\). This is within one power of \(n\) of the upper bounds on the same, given in [20], as the following result will show. We note here that in [20], Theorems 1.12 and 1.13 are correct for \(c\)-ary trees when \(c=2,\) but have some superficial typos when \(c\neq 2.\)

The paper is organized as follows. We first acquaint the reader with our primary tools, then prove the main technical theorem, which is a pinned estimate. We then show how to use this to prove our first main result, which is a lower bound on distinct \(k\)-tuples of dot products determined by trees isomorphic to a given tree. Finally, we conclude with two constructions that together establish our second main result, a lower bound on how often a particular \(k\)-tuple of dot products determined by trees isomorphic to a given tree can occur.

2 Proofs

2.1 Preliminaries

Given a point \(p=(p_1,p_2)\in \mathbb R^2\setminus\{(0,0)\},\) the set of points \(q\in \mathbb R^2\) that determine dot product \(\alpha\) with \(p\) form a line whose slope is perpendicular to the line through both \(p\) and the origin. Indeed, recall the definition of dot product and rearrange the equation \(p_1q_1+p_2q_2 = \alpha.\) We sometimes call this the \(\alpha\)-line of \(p\), and denote it \(\ell_\alpha(p).\) A direct consequence of this definition is that \(p\neq q\) implies \(\ell_\alpha(p)\neq \ell_\alpha(q).\) We recall the Szemerédi-Trotter theorem from [41]. Given a point \(p\) and a line \(\ell\), we call the pair \((p, \ell)\) an incidence if the point \(p\) is on the line \(\ell.\)

We give the following well-known corollary alluded to above to illustrate some of the basic ideas to come.

Corollary [ezdp] shows that there are many distinct dot products, but it does not show that any particular point determines many distinct dot products. For this, we introduce another concept. Given a point \(p\) and a set of points \(E,\) we define the pinned dot product set \(\Pi_p(E),\) to be the set of dot products determined by \(p\) and the points in the set \(E\). In this case, we call the point \(p\) a pin. Specifically, \[\Pi_p(E):=\{p\cdot q: q\in E\}.\]

2.2 The pinned result

The proof we give essentially comes from Section 9.2 in [18], but Theorem [pinned] highlights the pinned nature of the result, which is not explicitly stated in the original text. Moreover, we slightly modify the proof to get a result for two sets of points instead of one, which is what we need later. Unfortunately, because we are specifying which set the good pin must come from, this brings in the possibility of pathological pairs of point sets. For example, if \(E\) is a set of \(n\) points on a line through the origin and \(F\) is a set of \(n\) points on a line perpendicular to the line containing \(E\), then we would have that each point \(x\in E\) we have \(|\Pi_x(F)|=1.\) However, if \(E=F\) above, the proof shows that we can drop the hypothesis that no line through the origin has more than \(\gtrsim n^\frac{2}{3}\) points of \(E.\)

To prove this result, we use a version of the so-called crossing number lemma. To state the lemma, we remind the reader of two concepts. First, a multigraph is a generalization of a graph allowing for multiple distinct edges connecting pairs of vertices. We refer to the number of distinct edges connecting a given pair of vertices as the edge multiplicity of that pair of vertices. Second, given a graph \(G\), its crossing number, denoted \(cr(G)\) is the minimum number of pairs of edges that cross taken over any drawing of \(G\) in the plane. So, a planar graph has crossing number zero, but any graph that is not planar has a positive crossing number. We state a multigraph version of the crossing number lemma, from Székely in [40].

Proof. We also assume that the origin is not in \(E\) or \(F\), as it can only determine the dot product zero anyway. Construct a graph, \(G\), whose vertex set is the point set \(E\cup F\). Note, although we defined a graph \(G_E\) related to a point set \(E\) above, this graph will have very different edges than \(G_E\). For every point \(p\in E\), draw the \(\alpha\)-lines for each \(\alpha\in\Pi_p(F).\) By definition, for each \(p\), the associated lines drawn will be parallel to one another. for every such \(\ell_\alpha(p)\) with more than one point on it, we connect vertices by an edge if their corresponding points are consecutive along that line. Notice that we disregard such lines with exactly one point on them. However, if \(p\) and \(q\) lie on the same radial line, it is possible that \(\ell_\alpha(p)=\ell_\beta(q).\) In this case, the construction of the graph \(H\) could lead to multiple edges between some pairs of vertices. Any time that there are multiple edges between a pair of points, \(r\) and \(s\), draw each edge as a smooth curve, \(\mathcal C,\) connecting the appropriate points close enough to the line segment, \(\mathcal L,\) connecting those points so that there are no other points from \(E\) in the region bounded by \(\mathcal C, \mathcal L,\) and the points \(r\) and \(s.\)

We deal with a possible degenerate case. Suppose there is a point \(p\) whose \(\alpha\)-lines contribute much fewer than \(n\) edges. In this case, this means that for most of the values of \(\alpha\in\Pi_p(F)\), we have \(\ell_\alpha(p)\) only has one point. That would imply that \(p\) determines \(\gtrsim n\) distinct dot products with points in \(F\), and we would be done. So we can assume that it takes about \(n\) edges for each point in \(E.\) Therefore, there must be about \(n^2\) edges in \(H\).

Define \(t\) to be the maximum number of distinct dot products determined by any point in \(p\in E\) with points in \(F\). That is, we define \[t := \max_{p\in E}\{p\cdot q:q\in F\}.\] The the bulk of rest of the proof is devoted to showing that \(t\gtrsim n^\frac{2}{3}.\) For any fixed radial line, \(\ell\), the vertices of consecutive points along each of the parallel lines perpendicular to \(\ell\) will be connected by as many edges as there are points on \(\ell\). Because of our hypothesis on the set \(E\), we know \(\ell\) has no more than \(n^\frac{2}{3}\) points from \(E\) on it. Thus, in our graph, the maximum edge multiplicity will be \(m\lesssim n^\frac{2}{3}\).

We pause here to note a slight change that applies to the case where \(E=F\) to handle the ‘moreover’ part of the theorem. Namely, if we were to have \(E=F,\) we would not need the hypothesis on the number of points on a radial line, as if there were more than \(n^\frac{2}{3}\) points on a radial line, any of those points would determine at least as many distinct dot products as are on the radial line, with the points on the radial line in question, so each such point would automatically satisfy the conclusion of the theorem statement.

Knowing the number of vertices, edges, and maximum edge multiplicity, we can try to apply Lemma [CNL]. Recall that we need \(e>5mv\) to apply the lemma. If this condition were to fail, we would have \(e\leq 5mv\), but plugging in our values of \(e, m,\) and \(v\) would give us \(n^2 \lesssim 5 n^\frac{2}{3} n\) which is a contradiction. Therefore, we can proceed assuming that this condition holds, and by plugging in values of \(e, m,\) and \(v,\) we are left with \[cr(G) \gtrsim \frac{e^3}{mv^2} \gtrsim \frac{n^6}{n^\frac{2}{3}n^2} \gtrsim n^\frac{10}{3}.\]

Next, we combine this with an upper bound for the crossing number of \(G.\) Any crossing between edges only occurs when a line perpendicular to the radial line of one point, Say \(p\), crosses a line perpendicular to the radial line of another point, say \(q.\) Since each point has no more than \(t\) such associated parallel lines (its \(\alpha\)-lines), each pair of points can contribute at most \(t^2\) crossings. Because we know that there are about \(n^2\) different pairs of points, we are guaranteed that the total number of crossings is bounded above by \(\lesssim n^2t^2\). While we do not know what the minimum number of crossings in any drawing of \(G\) in the plane must be, we can be sure that it is no more than \(n^2t^2\), because we have found an explicit drawing with no more than \(n^2t^2\) crossings. Putting the upper and lower bounds for the crossing number together: \[n^\frac{10}{3} \lesssim cr(G) \lesssim n^2t^2.\] This tells us that \(t\gtrsim n^\frac{2}{3},\) as claimed. we have shown the existence of one point \(x\in E\) that determines \(\gtrsim n^\frac{2}{3}\) distinct dot products with points in \(F\). We call this point a good pin. To finish the proof, we just need to show that there are many good pins. Indeed, define the set \(E_1:=E\setminus\{x\},\) and set \(F_1\) to be any subset of \(F\) with \(n-1\) points. We can run the same argument to get that there is a good pin \(x_1\in E_1,\) that determines many distinct dot products with the points in \(F_1.\) Repeat this process until we have at least \(m = \lceil n/2 \rceil\) such good pins, and obtain the set \(E_m.\) To finish, set \(E'=E_m,\) which is of size \(\geq n/2,\) and consists entirely of good pins. ◻

2.3 Proof of Theorem [highDim1]

With a simple pigeonholing argument, we can use Theorem [pinned] to get a pinned result in higher dimensions in the case that \(E=F\).

Proof. Suppose \(t_1\) is the maximum number of parallel \((d-1)\)-hyperplanes supported by points in \(E\) that are the level sets of dot products determined by points in \(E.\) That is, these are the higher dimensional analogs of \(\alpha\)-lines. Let \(x\) be such a point determining \(t_{1}\) distinct dot products with points in \(E.\) Pick one of these parallel \((d-1)\)-hyperplanes, with as many or more points than any of the other parallel \((d-1)\)-hyperplanes and call it \(P_{1}\). By the pigeonhole principle, we have it has at least \(\gtrsim n /t_1\) points of \(E\). we repeat this process within \(P_1.\) Specifically, we select \(x_{2}\in P_1\) be a point determining \(t_{2}\) distinct dot products, so that no other points in \(P_{1}\) determine more dot products with points in \(P_1.\) As before, pick a \((d-2)\)-hyperplane \(P_{2}\), that contains greater than \((n/t_{1})/t_{2}\) points of \(E\). We continue doing this, getting successive hyperplanes of one dimension lower until \(P_{d-2}\) is a plane with \((n)/(t_{1}t_{2}...t_{d-2})\) points. By appealing to Theorem [pinned], we have this plane has a point \(x_{d-2}\) that determines \((n/(t_{1}t_{2}...t_{d-2}))^{\frac{2}{3}}\) distinct dot products.

we collect what we know about each of the points \(x_1, \dots, x_{d-1}.\) Namely, \(x_1\) determines \(t_1\) distinct dot products with the points of \(E\), \(x_2\) determines \(t_2,\) distinct dot products with the points of \(E\), and for all other \(j<d-1,\) we have \(x_j\) determines \(t_j\) distinct dot products with the points of \(E\). Finally, \(x_{d-1}\) determines is at least \(\gtrsim ((n)/(t_{1}t_{2}...t_{d-1}))^{\frac{2}{3}}\) distinct dot products with the points in \(E\). Putting all of this together, we have \[\label{hiDimPinned} \max_{x\in E}\left|\Pi_x(E)\right|\gtrsim \max\left\{t_1, t_2, \dots, t_{d-2}, ((n)/(t_{1}t_{2}...t_{d-2}))^{\frac{2}{3}}\right\}.\] we consider the case when all of the components are approximately equal, namely if \[t_1 \approx t_2 \approx \dots \approx ((n)/(t_{1}t_{2}...t_{d-2}))^{\frac{2}{3}}.\] In this case, we obtain that \[t_1\approx \left(\frac{n}{t_1^{d-2}}\right)^\frac{2}{3},\] which gives \[\max_{x\in E}\left|\Pi_x(E)\right| \approx t_1\gtrsim n^\frac{2}{2d-1}.\] we deal with the case that one of the \(t_j\) is significantly bigger one of the others. It is straightforward to see that this would only increase the lower bound for \(\left|\Pi_x(E)\right|\). The same is true if the final term, \(((n)/(t_{1}t_{2}...t_{d-2}))^{\frac{2}{3}},\) is significantly larger than the \(t_j.\) To prove this rigorously, one can set up a Lagrange multiplier argument, or take logarithms of each term in base \(n\) and use linear programming.

To summarize, we can pigeonhole our previous argument onto higher dimensions by running the algorithm on each hyperplane determined by our points. In general, our lower bound for higher dimensions is: \[\max_{x\in E}\left|\Pi_x(E)\right|\gtrsim n^{\frac{2}{2d-1}}.\] ◻

2.4 Proof of Theorem [main1]

This argument closely follows the arguments in [36], by Dung, Pham, and the fourth listed author, which was inspired by the work of Ou and Taylor in [34]. The proof of Theorem [main1] will follow by applying this more technical result. For brevity, we often conflate a point in \(\mathbb R^2\) with its associated vertex in a graph. Given a tree \(T\) with a vertex \(v\), we refer to the pair of them by \((T,v).\)

In essence, what the theorem says is that if we fix a tree \(T\) and isolate a vertex \(v\), then there are many points \(x\) that serve as the vertex \(v\) in many trees \(T'\), isomorphic to \(T\), and that these isomorphic copies \(T'\) have a wide variation of dot product edge weights.

We prove Theorem [tech1] by induction on \(k.\) The base case is when \(k=1,\) which holds by applying Theorem [pinned]. We assume that the conclusion holds for any tree on \(k\) vertices, and then show that it also holds for any tree on \(k+1\) vertices. We do this by splitting into two cases: the case where \(v\) is a leaf of \(T\) (only adjacent to one other vertex of \(T\)) and the case where \(v\) is not a leaf of \(T\).

If \(v\) is a leaf of \(T,\) then it has a unique adjacent vertex, which we call \(u.\) Notice that the tree \(S:=T\setminus {v}\) has \(k\) edges, so we can apply the induction hypothesis to get that there is a subset \(E'\subset E\) with size at least \(2^{-k}n\) such that for all \(x\in E',\) there are \(\gtrsim n^\frac{2k}{3}\) distinct dot product edge weight \(k\)-tuples \(\vec w\) for trees \(S'_{\vec w}\) with \(x\) as a vertex so that \((S'_{\vec w},x)\) is isomorphic to \((S,u).\) Recall that for tree isomorphism here, we are not concerned with the edge weights. We are showing that there are many different trees with the same general shape, but different edge weights. Next, we can apply Theorem [pinned] to the set \(E'\) and any subset of \(F'\subseteq F\) of size \(|E'|\) to get that there a subset \(E''\subseteq E'\) of size at least \(|E'|/2,\) so that every point \(x\in E''\) determines at least \(\gtrsim n^\frac{2}{3}\) distinct dot products with points in \(F'.\) Putting this all together, we have there is a set, \(E''\) of size at least \(|E'|/2 \geq 2^{-(k+1)}n\) so that any point \(x\in E''\) satisfies the conclusion of the theorem. This handles the case that \(v\) is a leaf.

We turn our attention to the case that \(v\) is not a leaf. In this case, we split \(T\) into two trees that share only the vertex \(v.\) So \(T_1\) is a tree with at least one edge and \(v\) as a vertex, \(T_2\) is also a tree with at least one edge with \(v\) as a vertex, and the union of the two trees is \(T\). Suppose the number of edges in \(T_1\) is \(k_1\), and the number of edges in \(T_2\) is \(k_2\). As \(k\) is the total number of edges in \(T\), and they are all accounted for without repeating by considering both \(T_1\) and \(T_2\), we have \(k=k_1+k_2.\)

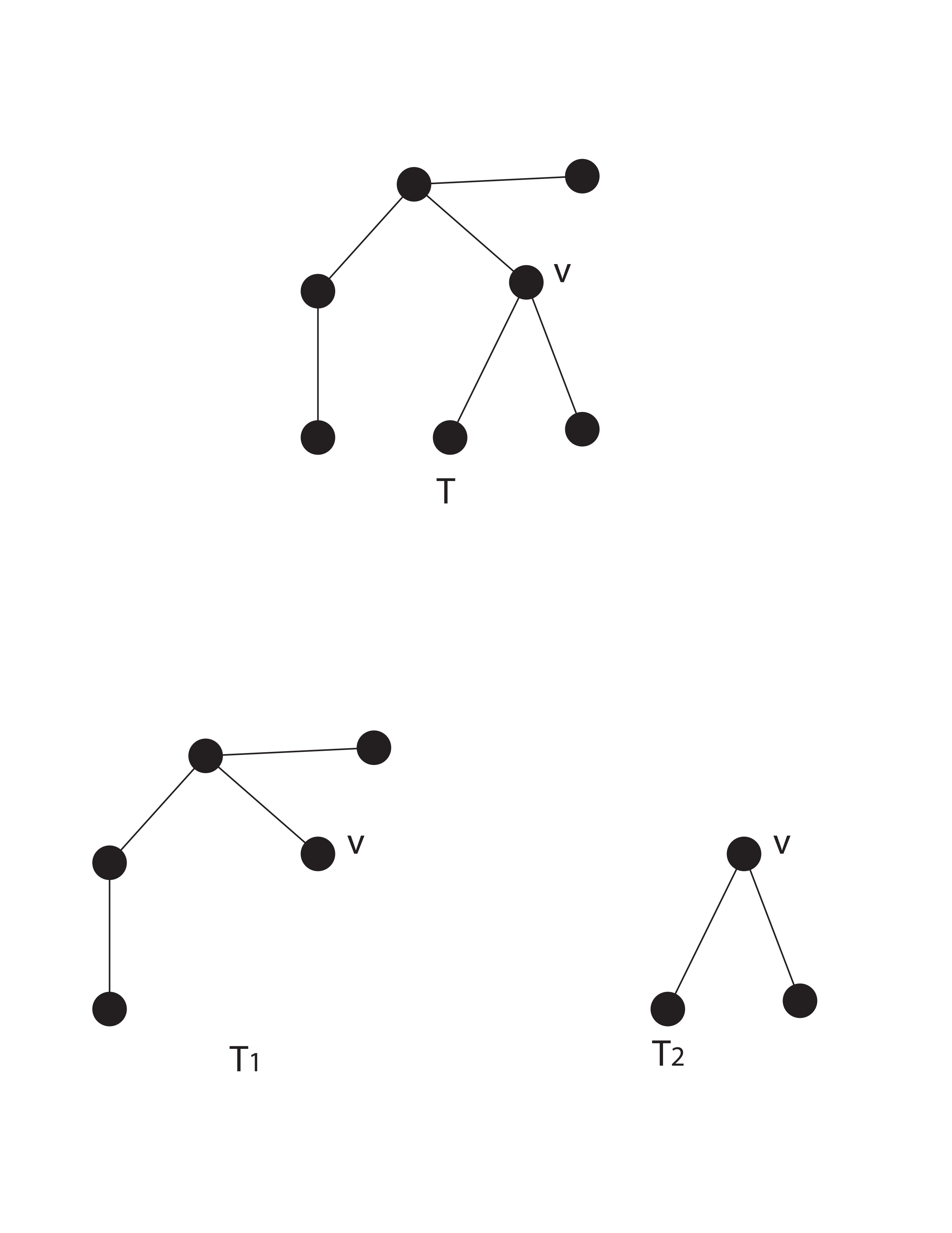

Figure 1: Here we can see the tree \(T\) with vertex \(v\) decomposed into \(T_1\) and \(T_2\), both of which also have vertex \(v\).

Next, we arbitrarily partition \(E\) into two subsets of equal size (either both \(n/2\) or \((n+1)/2\) and \((n-1)/2\)), so we have \[E = E_1\sqcup E_2.\] Next, we similarly partition \(F\) into two subsets of nearly equal size, to get \(F_1\) and \(F_2\). We perform the following steps for both \(E_1\) and \(E_2\) separately. In what follows, we often need various sets to be the same size, but they could be off by one. If this is the case, we merely delete a point from the larger set as needed providing a negligible error considering the fact that \(n\) is large.

Because \(k_1\leq k,\) we can apply the induction hypothesis to \(E_i\) and \(F_1\) with \((T_1,v)\) to find a subset \(E_i'\subseteq E_i\) of size at least \(2^{-k_1}|E_i|\) with the property that for every \(x\in E_i'\), there are at least \(\gtrsim n^\frac{2k_1}{3}\) distinct dot product \(k_1\)-tuples \(\vec w_1\) corresponding to trees isomorphic to \(T_1\) with \(x\) serving as the vertex \(v\) and the other vertices coming from points in \(F_1\). we find an arbitrary subset \(F_2'\subseteq F_2\) of size \(|E_1'|.\) Because \(k_2\leq k,\) we can again appeal to the induction hypothesis for the sets \(E_i'\) and \(F_2'\) with the tree \(T_2\) and vertex \(v.\) This guarantees the existence of a set \(E_i''\subseteq E_i'\) whose size is at least \[\label{Esize} |E_i''|\geq 2^{-k_2}|E_i'| \geq 2^{-k_2-k_1}|E_i| = 2^{-k}|E_i|\geq 2^{-k-1}n - 1,\] with the property that for every \(y\in E_i''\), there are at least \(\gtrsim n^\frac{2k_2}{3}\) distinct dot product \(k_2\)-tuples \(\vec w_2\) corresponding to trees isomorphic to \(T_2\) with \(y\) serving as the vertex \(v\) and the other vertices coming from points in \(F_2'.\) Because \(E_i''\subseteq E_i',\) each of these points \(y\in E_i''\) also determines at least \(\gtrsim n^\frac{2k_1}{3}\) distinct dot product \(k_1\)-tuples \(\vec w_1\) corresponding to trees isomorphic to \(T_1\) with \(y\) serving as the vertex \(v\). Because we chose \(F_1\) disjoint from \(F_2,\) we know that the points in \(F_1\) that serve as vertices for isomorphic copies of \(T_1\) are disjoint from the points from \(F_2\) that serve as vertices for the isomorphic copies of \(T_2.\)

We generalize a term from before. Here, a good pin is a choice of \(v\) determining sufficiently many distinct dot product tuples from their respective dot product trees, in analogy to the same term applied to single dot products in the proof of Theorem [pinned]. Recall that we run the above argument for both \(E_1\) and \(E_2\), which were disjoint. So we can add the good pins \(v\) coming from \(E_1\) to the good pins \(v\) coming from \(E_2\) and appeal to [Esize] to get a lower bound on the number good pins to be \[|E'|\geq |E_1''\sqcup E_2''| \geq \left(2^{-k-1}n-1\right) + \left(2^{-k-1}n-1\right) = 2^{-k}n-2 = 2^{-k}n-o(1),\] as claimed.

To finish, notice that by definition, the dot product \(k\)-tuple \(\vec w\) is what we obtain by combining \(\vec w_1\) and \(\vec w_2.\) Moreover, \(F_1\) and \(F_2\) were disjoint, so the total number of distinct dot product \(k\)-tuples \(\vec w\) determined by isomorphic copies of \(T\) with \(v\) coming from \(E\) and the other vertices coming from \(F\) is at least the product of the number of dot product \(k_1\)-tuples \(\vec w_1\) associated to isomorphic copies of \(T_1\) from \(F_1'\) times the number of dot product \(k_1\)-tuples \(\vec w_2\) associated to isomorphic copies of \(T_2\) coming from points in \(F_2'.\) \[\label{kSum} \gtrsim n^\frac{2k_1}{3}\cdot n^\frac{2nk_2}{3} =n^\frac{2(k_1+k_2)}{3} = n^\frac{2k}{3},\] finishing the induction step, and therefore the proof of Theorem [tech1].

2.5 Proof of Theorem [main2]

Theorem [main2] will follow from the following two constructions, which we state separately as propositions. The first one is adapted from a construction given in [31].

2.5.1 Proof of Proposition [KMSprop]

This construction is a modification of a chains construction in [31]. It can be easily modified any number of ways, but we restrict to one way that is relatively easy to communicate, while still showing the essential components that one might want to modify. We begin by 2-coloring the vertices tree \(T\), which we can do because the chromatic number of any tree is at most 2. Call the two bipartition sets \(U\) and \(V\), and suppose without loss of generality that \(|U|\geq |V|\). let \(k_1\) denote the size of \(U\) and let \(k_2\) denote the size of \(|V|.\) So \(k_1+k_2=k+1.\) Recall that by definition, we know \(k_1=|U|\geq \lceil k/2 \rceil.\) Now we proceed with the following algorithm. Choose any vertex in \(U\) and call it \(u_1\).

Place points on the standard \(xy\)-coordinate plane. Place \(\lfloor(n-k_2)/k_1\rfloor\) points along the line \(x=1\) in the plane. Suppose that \(u_1\) has \(a_1\) neighbors in \(T\) called \(v_{1,1}\) through \(v_{1,a_1}\). For each such neighbor \(v_{1,j}\), place a point at \((1+j,0)\). So any of the points along the line \(x=1\) have dot product \(1+j\) with the point at \((1+j,0).\) Now, call the \(b\) neighbors of \(v_{1,1}\) (other than \(u_1\)) \(u_2, u_3, \dots, u_{b}\). For each such neighbor \(u_j\), place \(\lfloor(n-k_2)k_1\rfloor\) points on the line \(x=1+a_1+j\). Continue by placing single points along the \(x\)-axis for vertices from \(V\), and columns of \(\lfloor(n-k_2)/k_1\rfloor\) points for each vertex from \(U\), keeping track of the relative dot products. After all of the vertices in \(U\) and \(V\) have been processed, place any other remaining points in such a way that they do not overlap with previously placed points, until you have a total of \(n\) points, and the construction is finished.

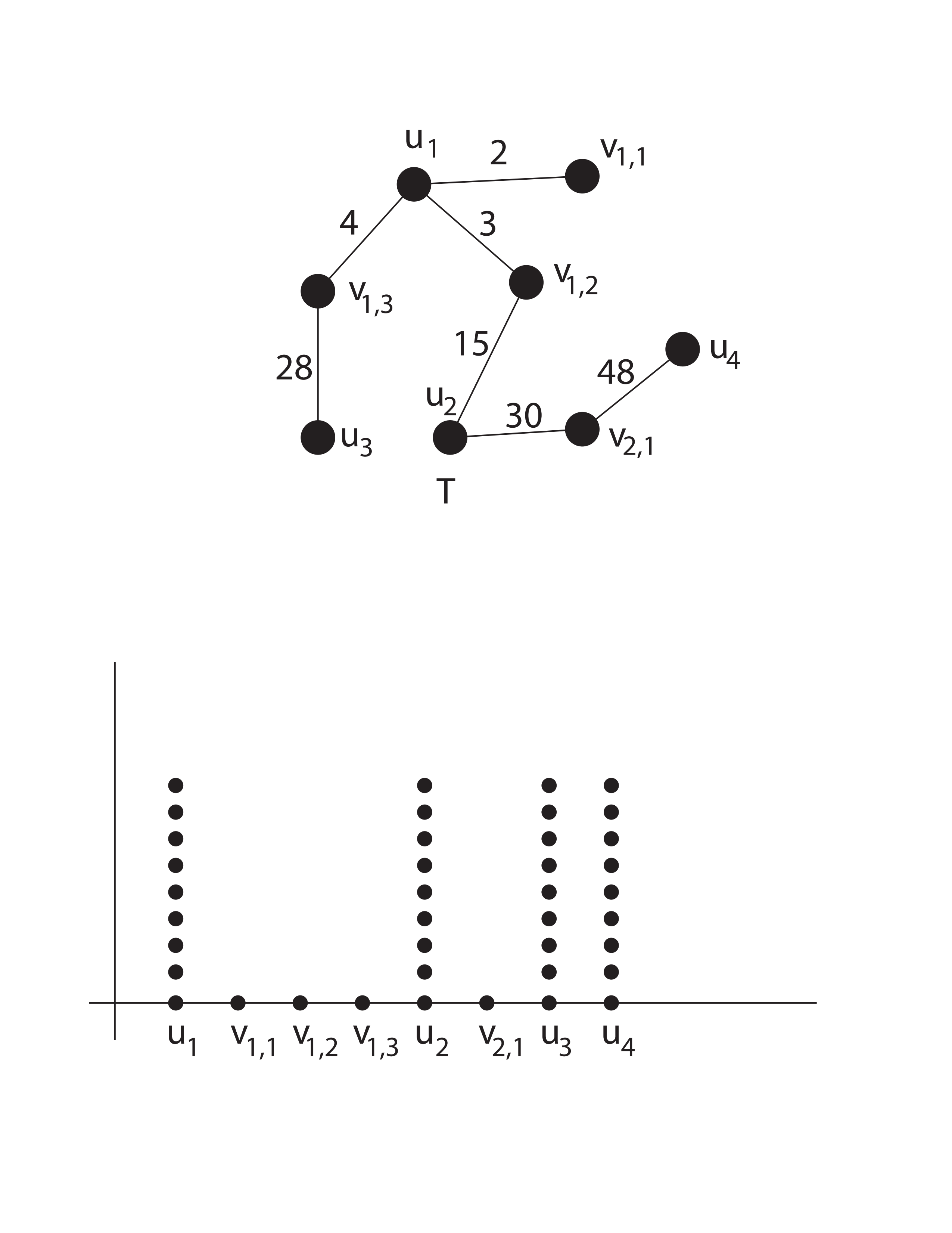

Figure 2: Here we can see the tree \(T\) with vertices broken up into \(U\) and \(V\), along with a set of points in \(\mathbb R^2\) that correspond to it. Note for example, the point at \((6,0)\) will always a choice for \(v_{2,1}\), and its dot product with any point in the column of points with \(x=8\), each of which is a possible choice for \(u_4\), will have dot product \(48\), so we have the dot product edge weight of \(48\) on the edge connecting \(v_{2,1}\) and \(u_4\).

2.5.2 Proof of Proposition [ISprop]

This construction is essentially the discrete part of the construction in [28]. We describe this construction in full detail for a self-contained exposition. The new piece here is how to embed the trees. Also, in Proposition [ISprop], we stress that the dot products are always 1, as opposed to the previous construction, for Proposition [KMSprop], where our choices of dot product edge weights might have to be different. The basic idea is to construct two sets, \(E\) and \(F\), where every point in either set makes the dot product \(1\) with many points in the other set. The set \(E\) will be a kind of lattice, so it will have many points on many hyperplanes. The set \(F\) will be the points that make dot product \(1\) with many of the hyperplanes. We make this precise.

For a large natural number \(n\), fix \(q\approx n^\frac{1}{d+1}.\) Now define two sets of numbers: \[A:=\left\{\frac{q+i}{2q}:i=1,\dots, q\right\},\] and \[B:=\left\{\frac{q^2+i}{2q^2}:i=1,\dots,q^2\right\}.\] To build our lattice, \(E\), we take the \((d-1)\)-fold Cartesian product of \(A\) with itself, and then take the Cartesian product of this set with \(B\). By construction, we have \(|E|=q^{d-1}\cdot q^2\approx n.\) Next, we focus on the point set \(F\), which will also be built using the sets of numbers \(A\) and \(B\). We use \((-A)\) to denote the negatives of each element of \(A\). We write \((-A):=\{-a:a\in A\}.\) With this in tow, we define the point set \(F\): \[F:=\left\{\left(\frac{-c_1}{b}, \frac{-c_2}{b}, \dots, \frac{-c_{d-1}}{b}, \frac{1}{b}\right):c_{j}\in(-A), b\in B \right\}.\] We next bound the number of point pairs whose dot product is \(1\). Dot products are constant on hyperplanes, so given a \(d\)-tuple, \((c_1, c_2, \dots, c_{d-1},b),\) we can define the hyperplane \[h(c_1, c_2, \dots, c_{d-1},b) := \left\{ (x_1, x_2, \dots, x_d)\in \mathbb R^d : x_d = \left(\sum_{j=1}^{d-1}c_jx_j\right) + b \right\}.\] We consider the following set of hyperplanes \[H :=\left\{h(c_1, c_2, \dots, c_{d-1},b):c_j\in(-A), b\in B \right\}.\] These hyperplanes are the sets of points that determine dot product \(1\) with points in \(F.\) To prove this, consider a \(d\)-tuple, \((c_1, c_2, \dots, c_{d-1},b)\in(-A)^{d-1}\times B,\) and compute the dot product of the associated element of \(F\) and any point on the hyperplane associated to the same \(d\)-tuple. To be precise, consider the point \(f\in F\) given by \[f= \left(\frac{-c_1}{b}, \frac{-c_2}{b}, \dots, \frac{-c_{d-1}}{b}, \frac{1}{b}\right) \text{ to be associated to } h_f:=h(c_1, \dots, c_{d-1},b),\] a hyperplane in \(H\), and compute its dot product with an arbitrary \(x\in h_f.\) Their dot product will be \[\begin{aligned} f\cdot x &= \left(\frac{-c_1}{b}, \frac{-c_2}{b}, \dots, \frac{-c_{d-1}}{b}, \frac{1}{b}\right) \cdot \left(x_1, x_2, \dots, x_{d-1}, \left(\sum_{j=1}^{d-1}c_jx_j \right)+b \right)\\ &=\left(\sum_{j=1}^{d-1}\frac{-c_jx_j}{b}\right) + \left(\sum_{j=1}^{d-1}\frac{c_jx_j}{b}\right) +\frac{b}{b}=1. \end{aligned}\] We consider any \(f\in F\). The associated hyperplane, \(h_f\in H,\) consists of points that have dot product \(1\) with \(f.\) By construction, for most¹ \(f\in F,\) the associated hyperplane \(h_f\) will have \(\approx q^{d-1}\) points from \(E\). Moreover, the dual relation also holds. That is, for most \(e\in E,\) there are about \(q^{d-1}\) points \(f\in F\) such that \(e\cdot f = 1.\)

we embed our trees as in the proof of the previous result. For any tree \(T\), we 2-color the vertices to obtain disjoint vertex sets \(U\) and \(V.\) Fix some vertex from \(U\) to be \(u_1.\) Let any point \(f_1\in F\) be a choice for \(u_1.\) We consider the set of \(q^{d-1}\) choices of \(e\in h_{f_1}\) that have dot product \(1\) with \(f_1.\) Suppose that \(u_1\) has \(a_1\) neighbors in \(T\), and designate these by \(v_{1,1}, v_{1,2}, \dots, v_{1,a_1}.\) For each of these, we select a different point in \(h_{f_1}\). Notice that there are \(q^{d-1}\) choices for each of them. Consider the neighbors of \(v_{1,1}\) in \(T\), and for each representative point \(e_{1,1}\in h_{f_1}\) of each of them, choose from the \(q^{d-1}\) points of \(F\) that make dot product \(1\) with \(e_{1,1}.\) Continuing in this way, each new vertex that is processed in the tree has \(\approx q^{d-1}\) possible choices. Since there were \(\approx n\) choices for \(u_1,\) and each of the \(k\) subsequent points had \(q^{d-1}\approx n^\frac{d-1}{d+1}\) choices, we end up with a total of \(\gtrsim n^{1+k(d-1)/(d+1)}\) isomorphic copies of \(T\) in the set whose edge weights are \(1\), as claimed.
